Mlt::Animation Class Reference

C++ wrapper for mlt_animation — keyframe animation data. More...

#include <MltAnimation.h>

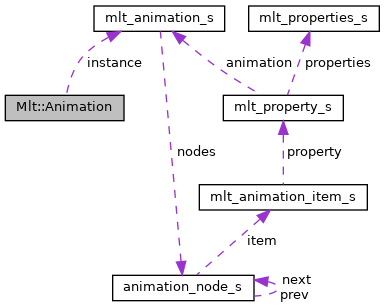

Collaboration diagram for Mlt::Animation:

Public Member Functions
	Animation ()
	Animation (const Animation &)
	Animation (mlt_animation animation)
	Wrap an existing mlt_animation handle (does not take ownership). More...
mlt_animation	get_animation () const
int	get_item (int position, bool &is_key, mlt_keyframe_type &)
	Get the interpolated value and keyframe type at position. More...
void	interpolate ()
	Recalculate intermediate values between keyframes. More...
bool	is_key (int position)
	Return true if position is exactly a keyframe. More...
bool	is_valid () const
	Return true if the underlying handle is non-null. More...
int	key_count ()
	Return the total number of keyframes. More...
int	key_get (int index, int &frame, mlt_keyframe_type &)
	Get the frame and type of the keyframe at index. More...
int	key_get_frame (int index)
	Return the frame number of the keyframe at index. More...
mlt_keyframe_type	key_get_type (int index)
	Return the interpolation type of the keyframe at index. More...
int	key_set_frame (int index, int frame)
	Move the keyframe at index to frame. More...
int	key_set_type (int index, mlt_keyframe_type type)
	Set the interpolation type of the keyframe at index. More...
mlt_keyframe_type	keyframe_type (int position)
	Return the interpolation type of the keyframe at position. More...
int	length ()
	Return the animation length in frames. More...
int	next_key (int position)
	Return the next keyframe position at or after position. More...
bool	next_key (int position, int &key)
	Get the keyfame at the position or the next following. More...
Animation &	operator= (const Animation &)
int	previous_key (int position)
	Return the previous keyframe position at or before position. More...
bool	previous_key (int position, int &key)
	Get the keyfame at the position or the previous before. More...
int	remove (int position)
	Remove the keyframe at position. More...
char *	serialize_cut (int in=-1, int out=-1)
	Serialize the animation as a string, optionally clipped to [in, out]. More...
char *	serialize_cut (mlt_time_format format, int in=-1, int out=-1)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...
void	set_length (int length)
	Set a new total length, scaling keyframe positions proportionally. More...
void	shift_frames (int shift)
	Shift all keyframe positions by shift frames. More...
	~Animation ()

Private Attributes
mlt_animation	instance

Detailed Description

C++ wrapper for mlt_animation — keyframe animation data.

An animation holds a set of keyframes that define how a property value changes over time. Obtain one from Properties via the anim_get / anim_set family of methods.

See also

mlt_animation_s

Constructor & Destructor Documentation

Animation() [1/3]

Animation::Animation

(

)

Animation() [2/3]

Animation::Animation

(

mlt_animation

animation

)

Wrap an existing mlt_animation handle (does not take ownership).

Animation() [3/3]

Animation::Animation

(

const Animation &

animation

)

~Animation()

Animation::~Animation

(

)

Member Function Documentation

get_animation()

mlt_animation Animation::get_animation

(

)

const

get_item()

int Animation::get_item	(	int	position,
		bool &	is_key,
		mlt_keyframe_type &	type
	)

Get the interpolated value and keyframe type at position.

interpolate()

void Animation::interpolate

(

)

Recalculate intermediate values between keyframes.

is_key()

bool Animation::is_key

(

int

position

)

Return true if position is exactly a keyframe.

is_valid()

bool Animation::is_valid

(

)

const

Return true if the underlying handle is non-null.

key_count()

int Animation::key_count

(

)

Return the total number of keyframes.

key_get()

int Animation::key_get	(	int	index,
		int &	frame,
		mlt_keyframe_type &	type
	)

Get the frame and type of the keyframe at index.

key_get_frame()

int Animation::key_get_frame

(

int

index

)

Return the frame number of the keyframe at index.

key_get_type()

mlt_keyframe_type Animation::key_get_type

(

int

index

)

Return the interpolation type of the keyframe at index.

key_set_frame()

int Animation::key_set_frame	(	int	index,
		int	frame
	)

Move the keyframe at index to frame.

key_set_type()

int Animation::key_set_type	(	int	index,
		mlt_keyframe_type	type
	)

Set the interpolation type of the keyframe at index.

keyframe_type()

mlt_keyframe_type Animation::keyframe_type

(

int

position

)

Return the interpolation type of the keyframe at position.

length()

int Animation::length

(

)

Return the animation length in frames.

next_key() [1/2]

int Animation::next_key

(

int

position

)

Return the next keyframe position at or after position.

Get the keyfame at the position or the next following.

If no keyframe exists at or after the position, the return value is invalid

Deprecated:

Prefer bool Animation::next_key( int position, int& key )

Parameters

position

the frame number at which to start looking for the next keyframe

Returns

the position of the next keyframe

next_key() [2/2]

bool Animation::next_key	(	int	position,
		int &	key
	)

Get the keyfame at the position or the next following.

On error, key is not modified.

Parameters

position	the frame number at which to start looking for the next keyframe
key	the returned position of the next keyframe

Returns

true if there was an error

operator=()

Animation & Animation::operator=

(

const Animation &

animation

)

previous_key() [1/2]

int Animation::previous_key

(

int

position

)

Return the previous keyframe position at or before position.

Get the keyfame at the position or the previous keyframe before.

If no keyframe exists at or before the position, the return value is invalid

Deprecated:

Prefer bool Animation::previous_key( int position, int& key )

Parameters

position

the frame number at which to start looking for the previous keyframe

Returns

the position of the previous keyframe

previous_key() [2/2]

bool Animation::previous_key	(	int	position,
		int &	key
	)

Get the keyfame at the position or the previous before.

On error, key is not modified.

Parameters

position	the frame number at which to start looking for the previous keyframe
key	the returned position of the previous keyframe

Returns

true if there was an error

remove()

int Animation::remove

(

int

position

)

Remove the keyframe at position.

serialize_cut() [1/2]

char * Animation::serialize_cut	(	int	in = -1,
		int	out = -1
	)

Serialize the animation as a string, optionally clipped to [in, out].

Caller must free() the returned string.

serialize_cut() [2/2]

char * Animation::serialize_cut	(	mlt_time_format	format,
		int	in = -1,
		int	out = -1
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

set_length()

void Animation::set_length

(

int

length

)

Set a new total length, scaling keyframe positions proportionally.

shift_frames()

void Animation::shift_frames

(

int

shift

)

Shift all keyframe positions by shift frames.

Field Documentation

instance

mlt_animation Mlt::Animation::instance

private

---

The documentation for this class was generated from the following files:

• mlt++/MltAnimation.h
• mlt++/MltAnimation.cpp
