#include <MltProperties.h>

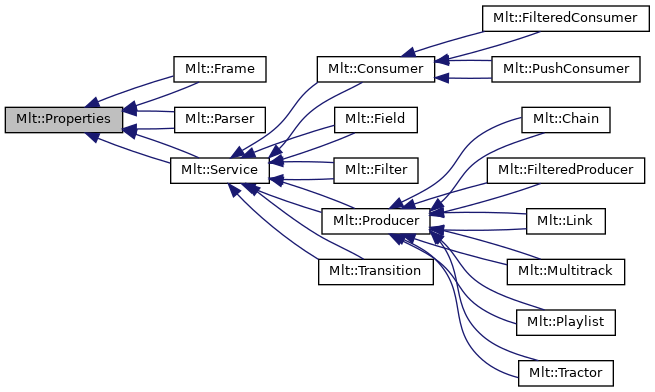

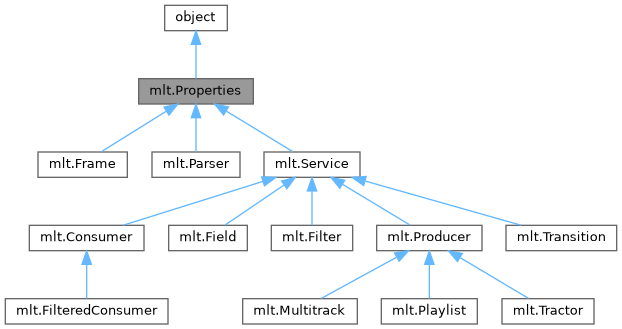

Inheritance diagram for Mlt::Properties:

[legend]

Collaboration diagram for Mlt::Properties:

Public Member Functions
char *	anim_get (const char *name, int position, int length=0)

mlt_color	anim_get_color (const char *name, int position, int length=0)

double	anim_get_double (const char *name, int position, int length=0)

int	anim_get_int (const char *name, int position, int length=0)

mlt_rect	anim_get_rect (const char *name, int position, int length=0)

int	anim_set (const char name, const char value, int position, int length=0)

int	anim_set (const char *name, double value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, int value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_color value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_rect value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

void	block (void *object=NULL)
	Suppress event delivery to `object`. More...

void	clear (const char *name)

int	copy (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`. More...

int	count ()
	Return the number of name/value pairs stored. More...

void	debug (const char title="Object", FILE output=stderr)

int	dec_ref ()

void	dump (FILE *output=stderr)
	Write all properties to `output` as "name=value" lines. More...

int	fire_event (const char *event)
	Fire a named event manually. More...

char *	frames_to_time (int, mlt_time_format=mlt_time_smpte_df)

char *	get (const char *name)
	Get a string property value by name. More...

char *	get (int index)
	Return the property value at positional `index` as a string. More...

char *	get (int index, mlt_time_format)
	Return the property value at positional `index` in the given time format. More...

Animation *	get_anim (const char *name)

mlt_animation	get_animation (const char *name)

mlt_color	get_color (const char *name)

void *	get_data (const char *name)

void *	get_data (const char *name, int &size)
	Get opaque data stored by name; `size` receives the byte count. More...

void *	get_data (int index, int &size)

double	get_double (const char *name)
	Get a double property value by name. More...

int	get_int (const char *name)
	Get an integer property value by name. More...

int64_t	get_int64 (const char *name)
	Get a 64-bit integer property value by name. More...

const char *	get_lcnumeric ()

char *	get_name (int index)
	Return the property name at positional `index`. More...

virtual mlt_properties	get_properties ()

Properties *	get_props (const char *name)

Properties *	get_props_at (int index)

mlt_rect	get_rect (const char *name)

char *	get_time (const char *name, mlt_time_format=mlt_time_smpte_df)

int	inc_ref ()

int	inherit (Properties &that)
	Copy all properties from `that` into this object. More...

bool	is_anim (const char *name)

bool	is_sequence ()
	Return true if all property names are numeric indices (i.e. More...

bool	is_valid ()
	Return true if the underlying mlt_properties handle is non-null. More...

Event *	listen (const char id, void object, mlt_listener)
	Register a listener callback for the named event. More...

void	load (const char *file)
	Merge properties from a file into this object. More...

void	lock ()
	Acquire the recursive mutex protecting this object. More...

void	mirror (Properties &that)
	Mirror all property changes on this object to `that`. More...

Properties &	operator= (const Properties &properties)

int	parse (const char *namevalue)
	Parse a "name=value" string and store the result. More...

int	pass_list (Properties &that, const char *list)
	Copy the space-delimited list of named properties from `that`. More...

void	pass_property (Properties &that, const char *name)
	Copy a single named property from `that`. More...

int	pass_values (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`. More...

int	preset (const char *name)
	Apply a named preset from the presets directory. More...

	Properties ()

	Properties (bool dummy)

	Properties (const char *file)
	Load properties from a file. More...

	Properties (const Properties &properties)

	Properties (mlt_properties properties)
	Wrap an existing mlt_properties without taking ownership. More...

	Properties (Properties &properties)

	Properties (void *properties)

bool	property_exists (const char *name)

int	ref_count ()

int	rename (const char source, const char dest)
	Rename property `source` to `dest`. More...

int	save (const char *file)
	Save properties to a file. More...

char *	serialise_yaml ()

int	set (const char name, const char value)
	Set a string property. More...

int	set (const char *name, double value)
	Set a double property. More...

int	set (const char *name, double x, double y, double w, double h, double opacity=1.0)

int	set (const char *name, int value)
	Set an integer property. More...

int	set (const char *name, int64_t value)
	Set a 64-bit integer property. More...

int	set (const char *name, mlt_color value)

int	set (const char *name, mlt_rect value)

int	set (const char *name, Properties &properties)

int	set (const char name, void value, int size, mlt_destructor destroy=NULL, mlt_serialiser serial=NULL)
	Store opaque data with an optional destructor and serialiser. More...

int	set_lcnumeric (const char *locale)

int	set_string (const char name, const char value)
	Set a string property (no environment-variable expansion). More...

Event *	setup_wait_for (const char *id)
	Set up a one-shot wait handle for event `id`. More...

int	time_to_frames (const char *time)

void	unblock (void *object=NULL)
	Resume event delivery to `object`. More...

void	unlock ()
	Release the recursive mutex. More...

void	wait_for (const char *id)

void	wait_for (Event *, bool destroy=true)

virtual	~Properties ()

Static Public Member Functions
static void	delete_event (Event *)

static Properties *	parse_yaml (const char *file)
	Parse a YAML Tiny file and return a new Properties tree. More...

Private Attributes
mlt_properties	instance

Detailed Description

C++ wrapper for mlt_properties.

Properties is a combination list/dictionary of name/value pairs and the base class for most MLT objects. It fires a property-changed event when a value is modified.

See also: mlt_properties_s

Constructor & Destructor Documentation

◆ Properties() [1/7]

Properties::Properties ( )

◆ Properties() [2/7]

Properties::Properties ( bool dummy )

◆ Properties() [3/7]

Properties::Properties ( Properties & properties )

◆ Properties() [4/7]

Properties::Properties ( const Properties & properties )

◆ Properties() [5/7]

Properties::Properties ( mlt_properties properties )

Wrap an existing mlt_properties without taking ownership.

◆ Properties() [6/7]

Properties::Properties ( void * properties )

◆ Properties() [7/7]

Properties::Properties ( const char * file )

Load properties from a file.

◆ ~Properties()

Properties::~Properties ( )

virtual

Member Function Documentation

◆ anim_get()

char * Properties::anim_get	(	const char *	name,
		int	position,
		int	length = `0`
	)

◆ anim_get_color()

mlt_color Properties::anim_get_color	(	const char *	name,
		int	position,
		int	length = `0`
	)

◆ anim_get_double()

double Properties::anim_get_double	(	const char *	name,
		int	position,
		int	length = `0`
	)

◆ anim_get_int()

int Properties::anim_get_int	(	const char *	name,
		int	position,
		int	length = `0`
	)

◆ anim_get_rect()

mlt_rect Properties::anim_get_rect	(	const char *	name,
		int	position,
		int	length = `0`
	)

◆ anim_set() [1/5]

int Properties::anim_set	(	const char *	name,
		const char *	value,
		int	position,
		int	length = `0`
	)

◆ anim_set() [2/5]

int Properties::anim_set	(	const char *	name,
		double	value,
		int	position,
		int	length = `0`,
		mlt_keyframe_type	keyframe_type = `mlt_keyframe_linear`
	)

◆ anim_set() [3/5]

int Properties::anim_set	(	const char *	name,
		int	value,
		int	position,
		int	length = `0`,
		mlt_keyframe_type	keyframe_type = `mlt_keyframe_linear`
	)

◆ anim_set() [4/5]

int Properties::anim_set	(	const char *	name,
		mlt_color	value,
		int	position,
		int	length = `0`,
		mlt_keyframe_type	keyframe_type = `mlt_keyframe_linear`
	)

◆ anim_set() [5/5]

int Properties::anim_set	(	const char *	name,
		mlt_rect	value,
		int	position,
		int	length = `0`,
		mlt_keyframe_type	keyframe_type = `mlt_keyframe_linear`
	)

◆ block()

void Properties::block ( void * object = NULL )

Suppress event delivery to object.

◆ clear()

void Properties::clear ( const char * name )

◆ copy()

int Properties::copy	(	Properties &	that,
		const char *	prefix
	)

Copy all properties whose names begin with prefix from that.

◆ count()

int Properties::count ( )

Return the number of name/value pairs stored.

◆ debug()

void Properties::debug	(	const char *	title = `"Object"`,
		FILE *	output = `stderr`
	)

◆ dec_ref()

int Properties::dec_ref ( )

◆ delete_event()

void Properties::delete_event ( Event * event )

static

◆ dump()

void Properties::dump ( FILE * output = stderr )

Write all properties to output as "name=value" lines.

◆ fire_event()

int Properties::fire_event ( const char * event )

Fire a named event manually.

◆ frames_to_time()

char * Properties::frames_to_time	(	int	frames,
		mlt_time_format	format = `mlt_time_smpte_df`
	)

◆ get() [1/3]

char * Properties::get ( const char * name )

Get a string property value by name.

◆ get() [2/3]

char * Properties::get ( int index )

Return the property value at positional index as a string.

◆ get() [3/3]

char * Properties::get	(	int	index,
		mlt_time_format	format
	)

Return the property value at positional index in the given time format.

◆ get_anim()

Animation * Properties::get_anim ( const char * name )

◆ get_animation()

mlt_animation Properties::get_animation ( const char * name )

◆ get_color()

mlt_color Properties::get_color ( const char * name )

◆ get_data() [1/3]

void * Properties::get_data ( const char * name )

◆ get_data() [2/3]

void * Properties::get_data	(	const char *	name,
		int &	size
	)

Get opaque data stored by name; size receives the byte count.

◆ get_data() [3/3]

void * Properties::get_data	(	int	index,
		int &	size
	)

◆ get_double()

double Properties::get_double ( const char * name )

Get a double property value by name.

◆ get_int()

int Properties::get_int ( const char * name )

Get an integer property value by name.

◆ get_int64()

int64_t Properties::get_int64 ( const char * name )

Get a 64-bit integer property value by name.

◆ get_lcnumeric()

const char * Properties::get_lcnumeric ( )

◆ get_name()

char * Properties::get_name ( int index )

Return the property name at positional index.

◆ get_properties()

mlt_properties Properties::get_properties ( )

virtual

Reimplemented in Mlt::Service, Mlt::Parser, and Mlt::Frame.

◆ get_props()

Properties * Properties::get_props ( const char * name )

◆ get_props_at()

Properties * Properties::get_props_at ( int index )

◆ get_rect()

mlt_rect Properties::get_rect ( const char * name )

◆ get_time()

char * Properties::get_time	(	const char *	name,
		mlt_time_format	format = `mlt_time_smpte_df`
	)

◆ inc_ref()

int Properties::inc_ref ( )

◆ inherit()

int Properties::inherit ( Properties & that )

Copy all properties from that into this object.

◆ is_anim()

bool Properties::is_anim ( const char * name )

◆ is_sequence()

bool Properties::is_sequence ( )

Return true if all property names are numeric indices (i.e.

a sequence).

◆ is_valid()

bool Properties::is_valid ( )

Return true if the underlying mlt_properties handle is non-null.

◆ listen()

Event * Properties::listen	(	const char *	id,
		void *	object,
		mlt_listener	listener
	)

Register a listener callback for the named event.

Caller owns the returned Event.

◆ load()

void Properties::load ( const char * file )

Merge properties from a file into this object.

◆ lock()

void Properties::lock ( )

Acquire the recursive mutex protecting this object.

◆ mirror()

void Properties::mirror ( Properties & that )

Mirror all property changes on this object to that.

◆ operator=()

Properties & Properties::operator= ( const Properties & properties )

◆ parse()

int Properties::parse ( const char * namevalue )

Parse a "name=value" string and store the result.

◆ parse_yaml()

Properties * Properties::parse_yaml ( const char * file )

static

Parse a YAML Tiny file and return a new Properties tree.

Caller owns the result.

◆ pass_list()

int Properties::pass_list	(	Properties &	that,
		const char *	list
	)

Copy the space-delimited list of named properties from that.

◆ pass_property()

void Properties::pass_property	(	Properties &	that,
		const char *	name
	)

Copy a single named property from that.

◆ pass_values()

int Properties::pass_values	(	Properties &	that,
		const char *	prefix
	)

Copy all properties whose names begin with prefix from that.

◆ preset()

int Properties::preset ( const char * name )

Apply a named preset from the presets directory.

◆ property_exists()

bool Properties::property_exists ( const char * name )

◆ ref_count()

int Properties::ref_count ( )

◆ rename()

int Properties::rename	(	const char *	source,
		const char *	dest
	)

Rename property source to dest.

◆ save()

int Properties::save ( const char * file )

Save properties to a file.

◆ serialise_yaml()

char * Properties::serialise_yaml ( )

◆ set() [1/9]

int Properties::set	(	const char *	name,
		const char *	value
	)

Set a string property.

◆ set() [2/9]

int Properties::set	(	const char *	name,
		double	value
	)

Set a double property.

◆ set() [3/9]

int Properties::set	(	const char *	name,
		double	x,
		double	y,
		double	w,
		double	h,
		double	opacity = `1.0`
	)

◆ set() [4/9]

int Properties::set	(	const char *	name,
		int	value
	)

Set an integer property.

◆ set() [5/9]

int Properties::set	(	const char *	name,
		int64_t	value
	)

Set a 64-bit integer property.

◆ set() [6/9]

int Properties::set	(	const char *	name,
		mlt_color	value
	)

◆ set() [7/9]

int Properties::set	(	const char *	name,
		mlt_rect	value
	)

◆ set() [8/9]

int Properties::set	(	const char *	name,
		Properties &	properties
	)

◆ set() [9/9]

int Properties::set	(	const char *	name,
		void *	value,
		int	size,
		mlt_destructor	destroy = `NULL`,
		mlt_serialiser	serial = `NULL`
	)

Store opaque data with an optional destructor and serialiser.

◆ set_lcnumeric()

int Properties::set_lcnumeric ( const char * locale )

◆ set_string()

int Properties::set_string	(	const char *	name,
		const char *	value
	)

Set a string property (no environment-variable expansion).

◆ setup_wait_for()

Event * Properties::setup_wait_for ( const char * id )

Set up a one-shot wait handle for event id.
