C++ wrapper for mlt_frame — a single unit of audio/video data. More...

#include <MltFrame.h>

Inheritance diagram for Mlt::Frame:

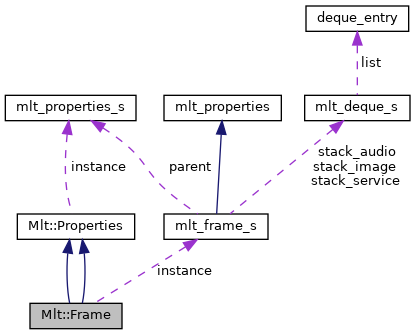

Collaboration diagram for Mlt::Frame:

[legend]

Public Member Functions
unsigned char *	fetch_image (mlt_image_format format, int w, int h, int writable=0)
	Scale the image to exactly `w` x `h` before returning. More...

	Frame ()

	Frame (const Frame &frame)

	Frame (Frame &frame)

	Frame (mlt_frame frame)
	Wrap an existing mlt_frame handle. More...

void *	get_audio (mlt_audio_format &format, int &frequency, int &channels, int &samples)
	Decode and return raw audio samples. More...

virtual mlt_frame	get_frame ()

uint8_t *	get_image (mlt_image_format &format, int &w, int &h, int writable=0)
	Decode and return the pixel buffer in the requested `format`. More...

Producer *	get_original_producer ()
	Return the producer that originally created this frame. More...

int	get_position ()
	Return the absolute frame position. More...

mlt_properties	get_properties () override

mlt_properties	get_unique_properties (Service &service)
	Return the per-frame property bag for `service` (thread-safe). More...

unsigned char *	get_waveform (int w, int h)
	Render a waveform image of size `w` x `h`. More...

Frame &	operator= (const Frame &frame)

int	set_alpha (uint8_t *alpha, int size, mlt_destructor destroy)

int	set_image (uint8_t *image, int size, mlt_destructor destroy)

virtual	~Frame ()

Public Member Functions inherited from Mlt::Properties
char *	anim_get (const char *name, int position, int length=0)

mlt_color	anim_get_color (const char *name, int position, int length=0)

double	anim_get_double (const char *name, int position, int length=0)

int	anim_get_int (const char *name, int position, int length=0)

mlt_rect	anim_get_rect (const char *name, int position, int length=0)

int	anim_set (const char name, const char value, int position, int length=0)

int	anim_set (const char *name, double value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, int value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_color value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_rect value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

void	block (void *object=NULL)
	Suppress event delivery to `object`. More...

void	clear (const char *name)

int	copy (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`. More...

int	count ()
	Return the number of name/value pairs stored. More...

void	debug (const char title="Object", FILE output=stderr)

int	dec_ref ()

void	dump (FILE *output=stderr)
	Write all properties to `output` as "name=value" lines. More...

int	fire_event (const char *event)
	Fire a named event manually. More...

char *	frames_to_time (int, mlt_time_format=mlt_time_smpte_df)

char *	get (const char *name)
	Get a string property value by name. More...

char *	get (int index)
	Return the property value at positional `index` as a string. More...

char *	get (int index, mlt_time_format)
	Return the property value at positional `index` in the given time format. More...

Animation *	get_anim (const char *name)

mlt_animation	get_animation (const char *name)

mlt_color	get_color (const char *name)

void *	get_data (const char *name)

void *	get_data (const char *name, int &size)
	Get opaque data stored by name; `size` receives the byte count. More...

void *	get_data (int index, int &size)

double	get_double (const char *name)
	Get a double property value by name. More...

int	get_int (const char *name)
	Get an integer property value by name. More...

int64_t	get_int64 (const char *name)
	Get a 64-bit integer property value by name. More...

const char *	get_lcnumeric ()

char *	get_name (int index)
	Return the property name at positional `index`. More...

Properties *	get_props (const char *name)

Properties *	get_props_at (int index)

mlt_rect	get_rect (const char *name)

char *	get_time (const char *name, mlt_time_format=mlt_time_smpte_df)

int	inc_ref ()

int	inherit (Properties &that)
	Copy all properties from `that` into this object. More...

bool	is_anim (const char *name)

bool	is_sequence ()
	Return true if all property names are numeric indices (i.e. More...

bool	is_valid ()
	Return true if the underlying mlt_properties handle is non-null. More...

Event *	listen (const char id, void object, mlt_listener)
	Register a listener callback for the named event. More...

void	load (const char *file)
	Merge properties from a file into this object. More...

void	lock ()
	Acquire the recursive mutex protecting this object. More...

void	mirror (Properties &that)
	Mirror all property changes on this object to `that`. More...

Properties &	operator= (const Properties &properties)

int	parse (const char *namevalue)
	Parse a "name=value" string and store the result. More...

int	pass_list (Properties &that, const char *list)
	Copy the space-delimited list of named properties from `that`. More...

void	pass_property (Properties &that, const char *name)
	Copy a single named property from `that`. More...

int	pass_values (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`. More...

int	preset (const char *name)
	Apply a named preset from the presets directory. More...

	Properties ()

	Properties (bool dummy)

	Properties (const char *file)
	Load properties from a file. More...

	Properties (const Properties &properties)

	Properties (mlt_properties properties)
	Wrap an existing mlt_properties without taking ownership. More...

	Properties (Properties &properties)

	Properties (void *properties)

bool	property_exists (const char *name)

int	ref_count ()

int	rename (const char source, const char dest)
	Rename property `source` to `dest`. More...

int	save (const char *file)
	Save properties to a file. More...

char *	serialise_yaml ()

int	set (const char name, const char value)
	Set a string property. More...

int	set (const char *name, double value)
	Set a double property. More...

int	set (const char *name, double x, double y, double w, double h, double opacity=1.0)

int	set (const char *name, int value)
	Set an integer property. More...

int	set (const char *name, int64_t value)
	Set a 64-bit integer property. More...

int	set (const char *name, mlt_color value)

int	set (const char *name, mlt_rect value)

int	set (const char *name, Properties &properties)

int	set (const char name, void value, int size, mlt_destructor destroy=NULL, mlt_serialiser serial=NULL)
	Store opaque data with an optional destructor and serialiser. More...

int	set_lcnumeric (const char *locale)

int	set_string (const char name, const char value)
	Set a string property (no environment-variable expansion). More...

Event *	setup_wait_for (const char *id)
	Set up a one-shot wait handle for event `id`. More...

int	time_to_frames (const char *time)

void	unblock (void *object=NULL)
	Resume event delivery to `object`. More...

void	unlock ()
	Release the recursive mutex. More...

void	wait_for (const char *id)

void	wait_for (Event *, bool destroy=true)

virtual	~Properties ()

Private Attributes
mlt_frame	instance

Additional Inherited Members
Static Public Member Functions inherited from Mlt::Properties
static void	delete_event (Event *)

static Properties *	parse_yaml (const char *file)
	Parse a YAML Tiny file and return a new Properties tree. More...

Detailed Description

C++ wrapper for mlt_frame — a single unit of audio/video data.

A frame carries all data for one rendered moment: pixel buffer, audio samples, and per-frame properties. Frames are obtained from a service via Service::get_frame() and are owned by the caller.

See also: mlt_frame_s

Constructor & Destructor Documentation

◆ Frame() [1/4]

Frame::Frame ( )

◆ Frame() [2/4]

Frame::Frame ( mlt_frame frame )

Wrap an existing mlt_frame handle.

◆ Frame() [3/4]

Frame::Frame ( Frame & frame )

◆ Frame() [4/4]

Frame::Frame ( const Frame & frame )

◆ ~Frame()

Frame::~Frame ( )

virtual

Member Function Documentation

◆ fetch_image()

unsigned char * Frame::fetch_image	(	mlt_image_format	format,
		int	w,
		int	h,
		int	writable = `0`
	)

Scale the image to exactly w x h before returning.

◆ get_audio()

void * Frame::get_audio	(	mlt_audio_format &	format,
		int &	frequency,
		int &	channels,
		int &	samples
	)

Decode and return raw audio samples.

◆ get_frame()

mlt_frame Frame::get_frame ( )

virtual

◆ get_image()

uint8_t * Frame::get_image	(	mlt_image_format &	format,
		int &	w,
		int &	h,
		int	writable = `0`
	)

Decode and return the pixel buffer in the requested format.

On return w and h contain the actual dimensions.

◆ get_original_producer()

Producer * Frame::get_original_producer ( )

Return the producer that originally created this frame.

Caller owns the result.

◆ get_position()

int Frame::get_position ( )

Return the absolute frame position.

◆ get_properties()

mlt_properties Frame::get_properties ( )

overridevirtual

Reimplemented from Mlt::Properties.

◆ get_unique_properties()

mlt_properties Frame::get_unique_properties ( Service & service )

Return the per-frame property bag for service (thread-safe).

◆ get_waveform()

unsigned char * Frame::get_waveform	(	int	w,
		int	h
	)

Render a waveform image of size w x h.

Caller owns result.

◆ operator=()

Frame & Frame::operator= ( const Frame & frame )

◆ set_alpha()

int Frame::set_alpha	(	uint8_t *	alpha,
		int	size,
		mlt_destructor	destroy
	)

◆ set_image()

int Frame::set_image	(	uint8_t *	image,
		int	size,
		mlt_destructor	destroy
	)

Field Documentation

◆ instance

mlt_frame Mlt::Frame::instance

private

The documentation for this class was generated from the following files:

mlt++/MltFrame.h
mlt++/MltFrame.cpp
