C++ wrapper for mlt_producer — origin of audio/video data. More...

#include <MltProducer.h>

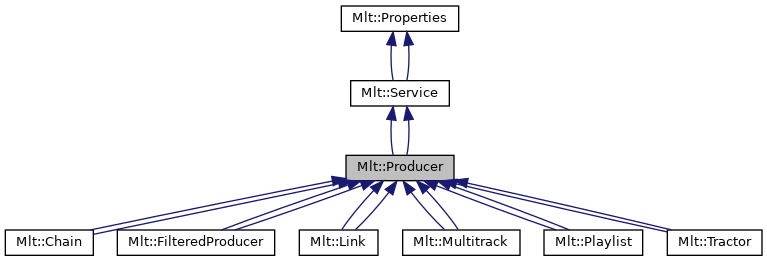

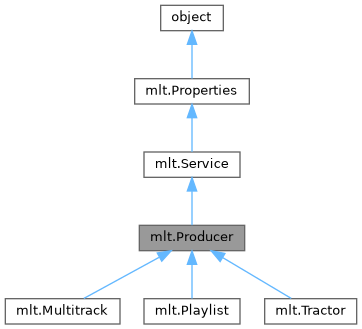

Inheritance diagram for Mlt::Producer:

[legend]

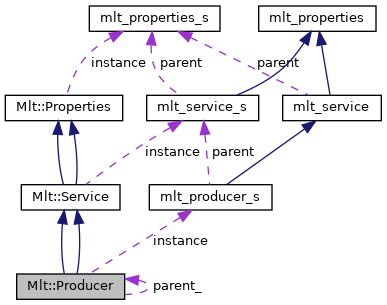

Collaboration diagram for Mlt::Producer:

[legend]

Public Member Functions
int	clear ()

Producer *	cut (int in=0, int out=-1)
	Create a cut (sub-range) producer sharing this producer's resource.

int	frame ()
	Return the current absolute frame number.

char *	frame_time (mlt_time_format=mlt_time_smpte_df)
	Return the current timecode string.

int64_t	get_creation_time ()

double	get_fps ()
	Return the frames-per-second rate for this producer's profile.

int	get_in ()
	Return the in-point frame number.

int	get_length ()
	Return the total length of the underlying resource in frames.

char *	get_length_time (mlt_time_format=mlt_time_smpte_df)

int	get_out ()
	Return the out-point frame number.

mlt_producer	get_parent ()

int	get_playtime ()
	Return the active play duration (out - in + 1).

virtual mlt_producer	get_producer ()

mlt_service	get_service () override

double	get_speed ()
	Return the current playback speed.

bool	is_blank ()
	Return true if this is a blank/gap clip.

bool	is_cut ()
	Return true if this producer is a cut.

Producer &	operator= (const Producer &producer)

void	optimise ()

Producer &	parent ()
	Return the parent producer (for cut producers, the shared root).

void	pass_frame_properties (Frame &frame)
	Copy this producer's serializable `meta`.

int	pause ()
	Pause playback (sets speed to 0).

int	position ()
	Return the current position relative to in-point.

bool	probe ()

	Producer ()

	Producer (const Producer &producer)

	Producer (mlt_producer producer)
	Wrap an existing mlt_producer handle.

	Producer (mlt_profile profile, const char id, const char service=NULL)

	Producer (Producer &producer)

	Producer (Producer *producer)

	Producer (Profile &profile, const char id, const char service=NULL)
	Construct and instantiate producer `id` from the repository.

	Producer (Service &producer)

bool	runs_into (Producer &that)

bool	same_clip (Producer &that)

int	seek (const char *time)
	Seek to a timecode string (e.g.

int	seek (int position)
	Seek to `position` (relative to in-point).

void	set_creation_time (int64_t creation_time)

int	set_in_and_out (int in, int out)
	Set the active in/out range in frame numbers.

int	set_speed (double speed)
	Set the playback speed (1.0 = normal, 0.0 = paused, -1.0 = reverse).

virtual	~Producer ()

Public Member Functions inherited from Mlt::Service
int	attach (Filter &filter)
	Attach `filter` to this service.

int	connect_producer (Service &producer, int index=0)
	Connect `producer` as the input at `index`.

Service *	consumer ()
	Return the downstream consumer service, or null.

int	detach (Filter &filter)
	Detach `filter` from this service.

int	disconnect_all_producers ()
	Disconnect all producer inputs.

int	disconnect_producer (int index=0)
	Disconnect the producer at `index`.

Filter *	filter (int index)
	Return the attached filter at `index`.

int	filter_count ()
	Return the number of attached filters.

Frame *	get_frame (int index=0)
	Pull and return frame `index` from this service.

mlt_profile	get_profile ()

virtual mlt_properties	get_properties () override

int	insert_producer (Service &producer, int index=0)
	Insert `producer` at `index`, shifting existing connections up.

void	lock ()
	Acquire the service mutex (use around property reads in render threads).

int	move_filter (int from, int to)
	Move the attached filter at position `from` to position `to`.

Service &	operator= (const Service &service)

Service *	producer ()
	Return the first upstream producer, or null.

Profile *	profile ()
	Return the profile associated with this service.

	Service ()

	Service (const Service &service)

	Service (mlt_service service)
	Wrap an existing mlt_service handle.

	Service (Service &service)

	Service (Service *service)

void	set_consumer (Service &service)

void	set_profile (mlt_profile profile)

void	set_profile (Profile &profile)

mlt_service_type	type ()
	Return the service sub-type (producer, filter, consumer, transition, etc.).

void	unlock ()
	Release the service mutex.

virtual	~Service ()

Public Member Functions inherited from Mlt::Properties
char *	anim_get (const char *name, int position, int length=0)

mlt_color	anim_get_color (const char *name, int position, int length=0)

double	anim_get_double (const char *name, int position, int length=0)

int	anim_get_int (const char *name, int position, int length=0)

mlt_rect	anim_get_rect (const char *name, int position, int length=0)

int	anim_set (const char name, const char value, int position, int length=0)

int	anim_set (const char *name, double value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, int value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_color value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_rect value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

void	block (void *object=NULL)
	Suppress event delivery to `object`.

void	clear (const char *name)

int	copy (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`.

int	count ()
	Return the number of name/value pairs stored.

void	debug (const char title="Object", FILE output=stderr)

int	dec_ref ()

void	dump (FILE *output=stderr)
	Write all properties to `output` as "name=value" lines.

int	fire_event (const char *event)
	Fire a named event manually.

char *	frames_to_time (int, mlt_time_format=mlt_time_smpte_df)

char *	get (const char *name)
	Get a string property value by name.

char *	get (int index)
	Return the property value at positional `index` as a string.

char *	get (int index, mlt_time_format)
	Return the property value at positional `index` in the given time format.

Animation *	get_anim (const char *name)

mlt_animation	get_animation (const char *name)

mlt_color	get_color (const char *name)

void *	get_data (const char *name)

void *	get_data (const char *name, int &size)
	Get opaque data stored by name; `size` receives the byte count.

void *	get_data (int index, int &size)

double	get_double (const char *name)
	Get a double property value by name.

int	get_int (const char *name)
	Get an integer property value by name.

int64_t	get_int64 (const char *name)
	Get a 64-bit integer property value by name.

const char *	get_lcnumeric ()

char *	get_name (int index)
	Return the property name at positional `index`.

Properties *	get_props (const char *name)

Properties *	get_props_at (int index)

mlt_rect	get_rect (const char *name)

char *	get_time (const char *name, mlt_time_format=mlt_time_smpte_df)

int	inc_ref ()

int	inherit (Properties &that)
	Copy all properties from `that` into this object.

bool	is_anim (const char *name)

bool	is_sequence ()
	Return true if all property names are numeric indices (i.e.

bool	is_valid ()
	Return true if the underlying mlt_properties handle is non-null.

Event *	listen (const char id, void object, mlt_listener)
	Register a listener callback for the named event.

void	load (const char *file)
	Merge properties from a file into this object.

void	lock ()
	Acquire the recursive mutex protecting this object.

void	mirror (Properties &that)
	Mirror all property changes on this object to `that`.

Properties &	operator= (const Properties &properties)

int	parse (const char *namevalue)
	Parse a "name=value" string and store the result.

int	pass_list (Properties &that, const char *list)
	Copy the space-delimited list of named properties from `that`.

void	pass_property (Properties &that, const char *name)
	Copy a single named property from `that`.

int	pass_values (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`.

int	preset (const char *name)
	Apply a named preset from the presets directory.

	Properties ()

	Properties (bool dummy)

	Properties (const char *file)
	Load properties from a file.

	Properties (const Properties &properties)

	Properties (mlt_properties properties)
	Wrap an existing mlt_properties without taking ownership.

	Properties (Properties &properties)

	Properties (void *properties)

bool	property_exists (const char *name)

int	ref_count ()

int	rename (const char source, const char dest)
	Rename property `source` to `dest`.

int	save (const char *file)
	Save properties to a file.

char *	serialise_yaml ()

int	set (const char name, const char value)
	Set a string property.

int	set (const char *name, double value)
	Set a double property.

int	set (const char *name, double x, double y, double w, double h, double opacity=1.0)

int	set (const char *name, int value)
	Set an integer property.

int	set (const char *name, int64_t value)
	Set a 64-bit integer property.

int	set (const char *name, mlt_color value)

int	set (const char *name, mlt_rect value)

int	set (const char *name, Properties &properties)

int	set (const char name, void value, int size, mlt_destructor destroy=NULL, mlt_serialiser serial=NULL)
	Store opaque data with an optional destructor and serialiser.

int	set_lcnumeric (const char *locale)

int	set_string (const char name, const char value)
	Set a string property (no environment-variable expansion).

Event *	setup_wait_for (const char *id)
	Set up a one-shot wait handle for event `id`.

int	time_to_frames (const char *time)

void	unblock (void *object=NULL)
	Resume event delivery to `object`.

void	unlock ()
	Release the recursive mutex.

void	wait_for (const char *id)

void	wait_for (Event *, bool destroy=true)

virtual	~Properties ()

Private Attributes
mlt_producer	instance

Producer *	parent_

Additional Inherited Members
Static Public Member Functions inherited from Mlt::Properties
static void	delete_event (Event *)

static Properties *	parse_yaml (const char *file)
	Parse a YAML Tiny file and return a new Properties tree.

Detailed Description

C++ wrapper for mlt_producer — origin of audio/video data.

A producer generates frames of audio and video data. It may read from a file, network stream, or synthesize content. Producers support in/out points, playback speed, and can be "cut" (sub-range) instances that share the underlying resource.

See also: mlt_producer_s

Constructor & Destructor Documentation

◆ Producer() [1/8]

Producer::Producer ( )

◆ Producer() [2/8]

Producer::Producer	(	Profile &	profile,
		const char *	id,
		const char *	service = `NULL`
	)

Construct and instantiate producer id from the repository.

◆ Producer() [3/8]

Producer::Producer	(	mlt_profile	profile,
		const char *	id,
		const char *	service = `NULL`
	)

◆ Producer() [4/8]

Producer::Producer ( Service & producer )

◆ Producer() [5/8]

Producer::Producer ( mlt_producer producer )

Wrap an existing mlt_producer handle.

◆ Producer() [6/8]

Producer::Producer ( Producer & producer )

◆ Producer() [7/8]

Producer::Producer ( const Producer & producer )

◆ Producer() [8/8]

Producer::Producer ( Producer * producer )

◆ ~Producer()

Producer::~Producer ( )

virtual

Member Function Documentation

◆ clear()

int Producer::clear ( )

◆ cut()

Producer * Producer::cut	(	int	in = `0`,
		int	out = `-1`
	)

Create a cut (sub-range) producer sharing this producer's resource.

Caller owns result.

◆ frame()

int Producer::frame ( )

Return the current absolute frame number.

◆ frame_time()

char * Producer::frame_time ( mlt_time_format format = mlt_time_smpte_df )

Return the current timecode string.

◆ get_creation_time()

int64_t Producer::get_creation_time ( )

◆ get_fps()

double Producer::get_fps ( )

Return the frames-per-second rate for this producer's profile.

◆ get_in()

int Producer::get_in ( )

Return the in-point frame number.

◆ get_length()

int Producer::get_length ( )

Return the total length of the underlying resource in frames.

◆ get_length_time()

char * Producer::get_length_time ( mlt_time_format format = mlt_time_smpte_df )

◆ get_out()

int Producer::get_out ( )

Return the out-point frame number.

◆ get_parent()

mlt_producer Producer::get_parent ( )

◆ get_playtime()

int Producer::get_playtime ( )

Return the active play duration (out - in + 1).

◆ get_producer()

mlt_producer Producer::get_producer ( )

virtual

Reimplemented in Mlt::Chain, Mlt::Link, Mlt::Multitrack, Mlt::Playlist, and Mlt::Tractor.

◆ get_service()

mlt_service Producer::get_service ( )

overridevirtual

Reimplemented from Mlt::Service.

◆ get_speed()

double Producer::get_speed ( )

Return the current playback speed.

◆ is_blank()

bool Producer::is_blank ( )

Return true if this is a blank/gap clip.

◆ is_cut()

bool Producer::is_cut ( )

Return true if this producer is a cut.

◆ operator=()

Producer & Producer::operator= ( const Producer & producer )

◆ optimise()

void Producer::optimise ( )

◆ parent()

Producer & Producer::parent ( )

Return the parent producer (for cut producers, the shared root).

◆ pass_frame_properties()

void Producer::pass_frame_properties ( Frame & frame )

Copy this producer's serializable meta.

properties onto frame and copy serializable set. properties with the prefix removed.

◆ pause()

int Producer::pause ( )

Pause playback (sets speed to 0).

◆ position()

int Producer::position ( )

Return the current position relative to in-point.

◆ probe()

bool Producer::probe ( )

◆ runs_into()

bool Producer::runs_into ( Producer & that )

◆ same_clip()

bool Producer::same_clip ( Producer & that )

◆ seek() [1/2]

int Producer::seek ( const char * time )

Seek to a timecode string (e.g.

"00:01:23.04").

◆ seek() [2/2]

int Producer::seek ( int position )

Seek to position (relative to in-point).

◆ set_creation_time()

void Producer::set_creation_time ( int64_t creation_time )

◆ set_in_and_out()

int Producer::set_in_and_out	(	int	in,
		int	out
	)

Set the active in/out range in frame numbers.

◆ set_speed()

int Producer::set_speed ( double speed )

Set the playback speed (1.0 = normal, 0.0 = paused, -1.0 = reverse).

Field Documentation

◆ instance

mlt_producer Mlt::Producer::instance

private

◆ parent_

Producer* Mlt::Producer::parent_
