C++ wrapper for mlt_playlist — a sequential list of clips. More...

#include <MltPlaylist.h>

Inheritance diagram for Mlt::Playlist:

[legend]

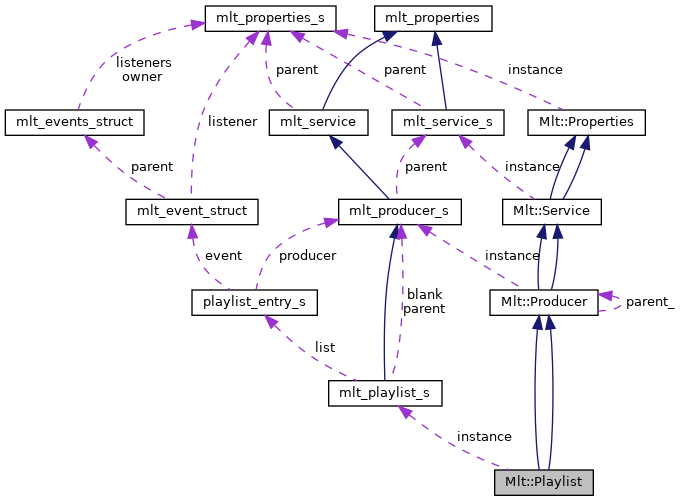

Collaboration diagram for Mlt::Playlist:

[legend]

Public Member Functions
int	append (Producer &producer, int in=-1, int out=-1)
	Append `producer` (optionally trimmed to [`in`, `out`]) to the end. More...

int	blank (const char *length)
	Append a blank of the given timecode `length`. More...

int	blank (int out)
	Append a blank of `out` + 1 frames. More...

int	blanks_from (int clip, int bounded=0)

int	clear ()
	Remove all entries from the playlist. More...

int	clip (mlt_whence whence, int index)

ClipInfo *	clip_info (int index, ClipInfo *info=NULL)
	Return metadata for the clip at `index`. More...

int	clip_length (int clip)

int	clip_start (int clip)
	Return the start frame of clip `clip` in the timeline. More...

void	consolidate_blanks (int keep_length=0)
	Merge adjacent blanks; if `keep_length` is 0, trim trailing blanks. More...

int	count ()
	Return the number of entries (clips and blanks). More...

Producer *	current ()
	Return the currently playing producer. More...

int	current_clip ()
	Return the index of the currently playing clip. More...

Producer *	get_clip (int clip)
	Return the producer for clip `clip`. More...

Producer *	get_clip_at (int position)
	Return the producer at absolute timeline frame `position`. More...

int	get_clip_index_at (int position)
	Return the clip index at absolute timeline frame `position`. More...

virtual mlt_playlist	get_playlist ()

mlt_producer	get_producer () override

int	insert (Producer &producer, int where, int in=-1, int out=-1)
	Insert `producer` at position `where`, shifting later clips. More...

int	insert_at (int position, Producer &producer, int mode=0)

int	insert_at (int position, Producer *producer, int mode=0)
	Insert `producer` at absolute timeline `position`. More...

void	insert_blank (int clip, int out)

bool	is_blank (int clip)
	Return true if the clip at `clip` is a blank. More...

bool	is_blank_at (int position)
	Return true if the absolute timeline `position` is in a blank. More...

bool	is_mix (int clip)
	Return true if the clip at `clip` is a mix. More...

int	join (int clip, int count=1, int merge=1)
	Join `count` clips starting at `clip` into one. More...

int	mix (int clip, int length, Transition *transition=NULL)
	Create a mix (dissolve) of `length` frames at the `clip` boundary. More...

int	mix_add (int clip, Transition *transition)
	Add a transition to an existing mix at `clip`. More...

int	mix_in (int clip, int length)

int	mix_out (int clip, int length)

int	move (int from, int to)
	Move the clip at `from` to `to`. More...

void	pad_blanks (int position, int length, int find=0)

	Playlist ()

	Playlist (mlt_playlist playlist)
	Wrap an existing mlt_playlist handle. More...

	Playlist (Playlist &playlist)

	Playlist (Profile &profile)

	Playlist (Service &playlist)

int	remove (int where)
	Remove the clip at position `where`. More...

int	remove_region (int position, int length)

int	reorder (const int *indices)
	Reorder the playlist using an array of old indices. More...

int	repeat (int clip, int count)
	Repeat the clip at `clip` `count` additional times. More...

Producer *	replace_with_blank (int clip)
	Replace the clip at `clip` with a blank of the same length. More...

int	resize_clip (int clip, int in, int out)
	Retrim the clip at `clip` to [`in`, `out`]. More...

int	split (int clip, int position)
	Split the clip at `clip` at frame `position` (relative to clip start). More...

int	split_at (int position, bool left=true)
	Split at absolute timeline `position`. More...

virtual	~Playlist ()

Public Member Functions inherited from Mlt::Producer
int	clear ()

Producer *	cut (int in=0, int out=-1)
	Create a cut (sub-range) producer sharing this producer's resource. More...

int	frame ()
	Return the current absolute frame number. More...

char *	frame_time (mlt_time_format=mlt_time_smpte_df)
	Return the current timecode string. More...

int64_t	get_creation_time ()

double	get_fps ()
	Return the frames-per-second rate for this producer's profile. More...

int	get_in ()
	Return the in-point frame number. More...

int	get_length ()
	Return the total length of the underlying resource in frames. More...

char *	get_length_time (mlt_time_format=mlt_time_smpte_df)

int	get_out ()
	Return the out-point frame number. More...

mlt_producer	get_parent ()

int	get_playtime ()
	Return the active play duration (out - in + 1). More...

mlt_service	get_service () override

double	get_speed ()
	Return the current playback speed. More...

bool	is_blank ()
	Return true if this is a blank/gap clip. More...

bool	is_cut ()
	Return true if this producer is a cut. More...

Producer &	operator= (const Producer &producer)

void	optimise ()

Producer &	parent ()
	Return the parent producer (for cut producers, the shared root). More...

int	pause ()
	Pause playback (sets speed to 0). More...

int	position ()
	Return the current position relative to in-point. More...

bool	probe ()

	Producer ()

	Producer (const Producer &producer)

	Producer (mlt_producer producer)
	Wrap an existing mlt_producer handle. More...

	Producer (mlt_profile profile, const char id, const char service=NULL)

	Producer (Producer &producer)

	Producer (Producer *producer)

	Producer (Profile &profile, const char id, const char service=NULL)
	Construct and instantiate producer `id` from the repository. More...

	Producer (Service &producer)

bool	runs_into (Producer &that)

bool	same_clip (Producer &that)

int	seek (const char *time)
	Seek to a timecode string (e.g. More...

int	seek (int position)
	Seek to `position` (relative to in-point). More...

void	set_creation_time (int64_t creation_time)

int	set_in_and_out (int in, int out)
	Set the active in/out range in frame numbers. More...

int	set_speed (double speed)
	Set the playback speed (1.0 = normal, 0.0 = paused, -1.0 = reverse). More...

virtual	~Producer ()

Public Member Functions inherited from Mlt::Service
int	attach (Filter &filter)
	Attach `filter` to this service. More...

int	connect_producer (Service &producer, int index=0)
	Connect `producer` as the input at `index`. More...

Service *	consumer ()
	Return the downstream consumer service, or null. More...

int	detach (Filter &filter)
	Detach `filter` from this service. More...

int	disconnect_all_producers ()
	Disconnect all producer inputs. More...

int	disconnect_producer (int index=0)
	Disconnect the producer at `index`. More...

Filter *	filter (int index)
	Return the attached filter at `index`. More...

int	filter_count ()
	Return the number of attached filters. More...

Frame *	get_frame (int index=0)
	Pull and return frame `index` from this service. More...

mlt_profile	get_profile ()

virtual mlt_properties	get_properties () override

int	insert_producer (Service &producer, int index=0)
	Insert `producer` at `index`, shifting existing connections up. More...

void	lock ()
	Acquire the service mutex (use around property reads in render threads). More...

int	move_filter (int from, int to)
	Move the attached filter at position `from` to position `to`. More...

Service &	operator= (const Service &service)

Service *	producer ()
	Return the first upstream producer, or null. More...

Profile *	profile ()
	Return the profile associated with this service. More...

	Service ()

	Service (const Service &service)

	Service (mlt_service service)
	Wrap an existing mlt_service handle. More...

	Service (Service &service)

	Service (Service *service)

void	set_consumer (Service &service)

void	set_profile (mlt_profile profile)

void	set_profile (Profile &profile)

mlt_service_type	type ()
	Return the service sub-type (producer, filter, consumer, transition, etc.). More...

void	unlock ()
	Release the service mutex. More...

virtual	~Service ()

Public Member Functions inherited from Mlt::Properties
char *	anim_get (const char *name, int position, int length=0)

mlt_color	anim_get_color (const char *name, int position, int length=0)

double	anim_get_double (const char *name, int position, int length=0)

int	anim_get_int (const char *name, int position, int length=0)

mlt_rect	anim_get_rect (const char *name, int position, int length=0)

int	anim_set (const char name, const char value, int position, int length=0)

int	anim_set (const char *name, double value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, int value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_color value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_rect value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

void	block (void *object=NULL)
	Suppress event delivery to `object`. More...

void	clear (const char *name)

int	copy (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`. More...

int	count ()
	Return the number of name/value pairs stored. More...

void	debug (const char title="Object", FILE output=stderr)

int	dec_ref ()

void	dump (FILE *output=stderr)
	Write all properties to `output` as "name=value" lines. More...

int	fire_event (const char *event)
	Fire a named event manually. More...

char *	frames_to_time (int, mlt_time_format=mlt_time_smpte_df)

char *	get (const char *name)
	Get a string property value by name. More...

char *	get (int index)
	Return the property value at positional `index` as a string. More...

char *	get (int index, mlt_time_format)
	Return the property value at positional `index` in the given time format. More...

Animation *	get_anim (const char *name)

mlt_animation	get_animation (const char *name)

mlt_color	get_color (const char *name)

void *	get_data (const char *name)

void *	get_data (const char *name, int &size)
	Get opaque data stored by name; `size` receives the byte count. More...

void *	get_data (int index, int &size)

double	get_double (const char *name)
	Get a double property value by name. More...

int	get_int (const char *name)
	Get an integer property value by name. More...

int64_t	get_int64 (const char *name)
	Get a 64-bit integer property value by name. More...

const char *	get_lcnumeric ()

char *	get_name (int index)
	Return the property name at positional `index`. More...

Properties *	get_props (const char *name)

Properties *	get_props_at (int index)

mlt_rect	get_rect (const char *name)

char *	get_time (const char *name, mlt_time_format=mlt_time_smpte_df)

int	inc_ref ()

int	inherit (Properties &that)
	Copy all properties from `that` into this object. More...

bool	is_anim (const char *name)

bool	is_sequence ()
	Return true if all property names are numeric indices (i.e. More...

bool	is_valid ()
	Return true if the underlying mlt_properties handle is non-null. More...

Event *	listen (const char id, void object, mlt_listener)
	Register a listener callback for the named event. More...

void	load (const char *file)
	Merge properties from a file into this object. More...

void	lock ()
	Acquire the recursive mutex protecting this object. More...

void	mirror (Properties &that)
	Mirror all property changes on this object to `that`. More...

Properties &	operator= (const Properties &properties)

int	parse (const char *namevalue)
	Parse a "name=value" string and store the result. More...

int	pass_list (Properties &that, const char *list)
	Copy the space-delimited list of named properties from `that`. More...

void	pass_property (Properties &that, const char *name)
	Copy a single named property from `that`. More...

int	pass_values (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`. More...

int	preset (const char *name)
	Apply a named preset from the presets directory. More...

	Properties ()

	Properties (bool dummy)

	Properties (const char *file)
	Load properties from a file. More...

	Properties (const Properties &properties)

	Properties (mlt_properties properties)
	Wrap an existing mlt_properties without taking ownership. More...

	Properties (Properties &properties)

	Properties (void *properties)

bool	property_exists (const char *name)

int	ref_count ()

int	rename (const char source, const char dest)
	Rename property `source` to `dest`. More...

int	save (const char *file)
	Save properties to a file. More...

char *	serialise_yaml ()

int	set (const char name, const char value)
	Set a string property. More...

int	set (const char *name, double value)
	Set a double property. More...

int	set (const char *name, double x, double y, double w, double h, double opacity=1.0)

int	set (const char *name, int value)
	Set an integer property. More...

int	set (const char *name, int64_t value)
	Set a 64-bit integer property. More...

int	set (const char *name, mlt_color value)

int	set (const char *name, mlt_rect value)

int	set (const char *name, Properties &properties)

int	set (const char name, void value, int size, mlt_destructor destroy=NULL, mlt_serialiser serial=NULL)
	Store opaque data with an optional destructor and serialiser. More...

int	set_lcnumeric (const char *locale)

int	set_string (const char name, const char value)
	Set a string property (no environment-variable expansion). More...

Event *	setup_wait_for (const char *id)
	Set up a one-shot wait handle for event `id`. More...

int	time_to_frames (const char *time)

void	unblock (void *object=NULL)
	Resume event delivery to `object`. More...

void	unlock ()
	Release the recursive mutex. More...

void	wait_for (const char *id)

void	wait_for (Event *, bool destroy=true)

virtual	~Properties ()

Static Public Member Functions
static void	delete_clip_info (ClipInfo *info)

Static Public Member Functions inherited from Mlt::Properties
static void	delete_event (Event *)

static Properties *	parse_yaml (const char *file)
	Parse a YAML Tiny file and return a new Properties tree. More...

Private Attributes
mlt_playlist	instance

Detailed Description

C++ wrapper for mlt_playlist — a sequential list of clips.

A playlist is a producer that plays its clips in order. Clips are producers (or cut-producers) that may be appended, inserted, removed, and trimmed. Blank gaps between clips are also supported.

See also: mlt_playlist_s

Constructor & Destructor Documentation

◆ Playlist() [1/5]

Playlist::Playlist ( )

◆ Playlist() [2/5]

Playlist::Playlist ( Profile & profile )

◆ Playlist() [3/5]

Playlist::Playlist ( Service & playlist )

◆ Playlist() [4/5]

Playlist::Playlist ( Playlist & playlist )

◆ Playlist() [5/5]

Playlist::Playlist ( mlt_playlist playlist )

Wrap an existing mlt_playlist handle.

◆ ~Playlist()

Playlist::~Playlist ( )

virtual

Member Function Documentation

◆ append()

int Playlist::append	(	Producer &	producer,
		int	in = `-1`,
		int	out = `-1`
	)

Append producer (optionally trimmed to [in, out]) to the end.

◆ blank() [1/2]

int Playlist::blank ( const char * length )

Append a blank of the given timecode length.

◆ blank() [2/2]

int Playlist::blank ( int out )

Append a blank of out + 1 frames.

◆ blanks_from()

int Playlist::blanks_from	(	int	clip,
		int	bounded = `0`
	)

◆ clear()

int Playlist::clear ( )

Remove all entries from the playlist.

◆ clip()

int Playlist::clip	(	mlt_whence	whence,
		int	index
	)

◆ clip_info()

ClipInfo * Playlist::clip_info	(	int	index,
		ClipInfo *	info = `NULL`
	)

Return metadata for the clip at index.

When info is NULL a new ClipInfo is returned and the caller owns it; otherwise info is updated in-place and returned.

◆ clip_length()

int Playlist::clip_length ( int clip )

◆ clip_start()

int Playlist::clip_start ( int clip )

Return the start frame of clip clip in the timeline.

◆ consolidate_blanks()

void Playlist::consolidate_blanks ( int keep_length = 0 )

Merge adjacent blanks; if keep_length is 0, trim trailing blanks.

◆ count()

int Playlist::count ( )

Return the number of entries (clips and blanks).

◆ current()

Producer * Playlist::current ( )

Return the currently playing producer.

Caller owns the result.

◆ current_clip()

int Playlist::current_clip ( )

Return the index of the currently playing clip.

◆ delete_clip_info()

void Playlist::delete_clip_info ( ClipInfo * info )

static

◆ get_clip()

Producer * Playlist::get_clip ( int clip )

Return the producer for clip clip.

Caller owns the result.

◆ get_clip_at()

Producer * Playlist::get_clip_at ( int position )

Return the producer at absolute timeline frame position.

Caller owns the result.

◆ get_clip_index_at()

int Playlist::get_clip_index_at ( int position )

Return the clip index at absolute timeline frame position.

◆ get_playlist()

mlt_playlist Playlist::get_playlist ( )

virtual

◆ get_producer()

mlt_producer Playlist::get_producer ( )

overridevirtual

Reimplemented from Mlt::Producer.

◆ insert()

int Playlist::insert	(	Producer &	producer,
		int	where,
		int	in = `-1`,
		int	out = `-1`
	)

Insert producer at position where, shifting later clips.

◆ insert_at() [1/2]

int Playlist::insert_at	(	int	position,
		Producer &	producer,
		int	mode = `0`
	)

◆ insert_at() [2/2]

int Playlist::insert_at	(	int	position,
		Producer *	producer,
		int	mode = `0`
	)

Insert producer at absolute timeline position.

◆ insert_blank()

void Playlist::insert_blank	(	int	clip,
		int	out
	)

◆ is_blank()

bool Playlist::is_blank ( int clip )

Return true if the clip at clip is a blank.

◆ is_blank_at()

bool Playlist::is_blank_at ( int position )

Return true if the absolute timeline position is in a blank.

◆ is_mix()

bool Playlist::is_mix ( int clip )

Return true if the clip at clip is a mix.

◆ join()

int Playlist::join	(	int	clip,
		int	count = `1`,
		int	merge = `1`
	)

Join count clips starting at clip into one.

◆ mix()

int Playlist::mix	(	int	clip,
		int	length,
		Transition *	transition = `NULL`
	)

Create a mix (dissolve) of length frames at the clip boundary.

◆ mix_add()

int Playlist::mix_add	(	int	clip,
		Transition *	transition
	)

Add a transition to an existing mix at clip.

◆ mix_in()

int Playlist::mix_in	(	int	clip,
		int	length
	)

◆ mix_out()

int Playlist::mix_out	(	int	clip,
		int	length
	)

◆ move()

int Playlist::move	(	int	from,
		int	to
	)

Move the clip at from to to.

◆ pad_blanks()

void Playlist::pad_blanks	(	int	position,
		int	length,
		int	find = `0`
	)

◆ remove()

int Playlist::remove ( int where )

Remove the clip at position where.

◆ remove_region()

int Playlist::remove_region	(	int	position,
		int	length
	)

◆ reorder()

int Playlist::reorder ( const int * indices )

Reorder the playlist using an array of old indices.

◆ repeat()

int Playlist::repeat	(	int	clip,
		int	count
	)

Repeat the clip at clip count additional times.

◆ replace_with_blank()

Producer * Playlist::replace_with_blank ( int clip )

Replace the clip at clip with a blank of the same length.

Caller owns the result.

◆ resize_clip()

int Playlist::resize_clip	(	int	clip,
		int	in,
		int	out
	)

Retrim the clip at clip to [in, out].

◆ split()

int Playlist::split	(	int	clip,
		int	position
	)

Split the clip at clip at frame position (relative to clip start).

◆ split_at()

int Playlist::split_at	(	int	position,
		bool	left = `true`
	)

Split at absolute timeline position.

Field Documentation

◆ instance

mlt_playlist Mlt::Playlist::instance

private

The documentation for this class was generated from the following files:

mlt++/MltPlaylist.h
mlt++/MltPlaylist.cpp

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Playlist() [1/5]

◆ Playlist() [2/5]

◆ Playlist() [3/5]

◆ Playlist() [4/5]

◆ Playlist() [5/5]

◆ ~Playlist()

Member Function Documentation

◆ append()

◆ blank() [1/2]

◆ blank() [2/2]

◆ blanks_from()

◆ clear()

◆ clip()

◆ clip_info()

◆ clip_length()

◆ clip_start()

◆ consolidate_blanks()

◆ count()

◆ current()

◆ current_clip()

◆ delete_clip_info()

◆ get_clip()

◆ get_clip_at()

◆ get_clip_index_at()

◆ get_playlist()

◆ get_producer()

◆ insert()

◆ insert_at() [1/2]

◆ insert_at() [2/2]

◆ insert_blank()

◆ is_blank()

◆ is_blank_at()

◆ is_mix()

◆ join()

◆ mix()

◆ mix_add()

◆ mix_in()

◆ mix_out()

◆ move()

◆ pad_blanks()

◆ remove()

◆ remove_region()

◆ reorder()

◆ repeat()

◆ replace_with_blank()

◆ resize_clip()

◆ split()

◆ split_at()

Field Documentation

◆ instance
