Mlt::Filter Class Reference

C++ wrapper for mlt_filter — modifies a single producer's output. More...

#include <MltFilter.h>

Inheritance diagram for Mlt::Filter:

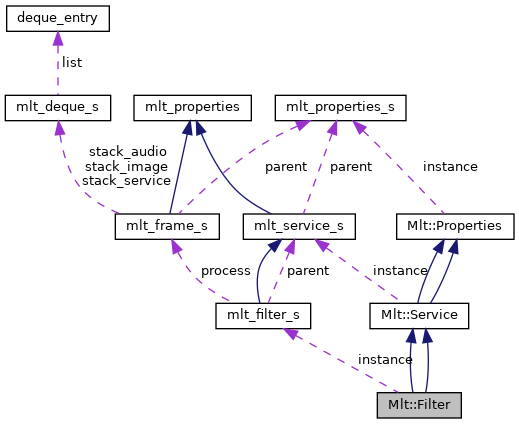

Collaboration diagram for Mlt::Filter:

Public Member Functions
int	connect (Service &service, int index=0)
	Connect this filter to service at index. More...
	Filter ()
	Filter (const Filter &filter)
	Filter (Filter &filter)
	Filter (Filter *filter)
	Filter (mlt_filter filter)
	Wrap an existing mlt_filter handle. More...
	Filter (mlt_profile profile, const char *id, const char *service=NULL)
	Filter (Profile &profile, const char *id, const char *service=NULL)
	Construct and instantiate filter id from the repository. More...
	Filter (Service &filter)
virtual mlt_filter	get_filter ()
int	get_in ()
	Return the in-point frame number. More...
int	get_length ()
	Return the duration (out - in + 1). More...
int	get_length2 (Frame &frame)
	Return the duration relative to frame's producer length. More...
int	get_out ()
	Return the out-point frame number. More...
int	get_position (Frame &frame)
	Return the current position of frame relative to the filter's in-point. More...
double	get_progress (Frame &frame)
	Return the playback progress of frame in the range [0.0, 1.0]. More...
mlt_service	get_service () override
int	get_track ()
	Return the multitrack track index on which this filter is applied. More...
Filter &	operator= (const Filter &filter)
void	process (Frame &frame)
	Run the filter's process function on frame (used by subclasses). More...
void	set_in_and_out (int in, int out)
	Restrict filter activity to the frame range [in, out]. More...
virtual	~Filter ()
Public Member Functions inherited from Mlt::Service
int	attach (Filter &filter)
	Attach filter to this service. More...
int	connect_producer (Service &producer, int index=0)
	Connect producer as the input at index. More...
Service *	consumer ()
	Return the downstream consumer service, or null. More...
int	detach (Filter &filter)
	Detach filter from this service. More...
int	disconnect_all_producers ()
	Disconnect all producer inputs. More...
int	disconnect_producer (int index=0)
	Disconnect the producer at index. More...
Filter *	filter (int index)
	Return the attached filter at index. More...
int	filter_count ()
	Return the number of attached filters. More...
Frame *	get_frame (int index=0)
	Pull and return frame index from this service. More...
mlt_profile	get_profile ()
virtual mlt_properties	get_properties () override
int	insert_producer (Service &producer, int index=0)
	Insert producer at index, shifting existing connections up. More...
void	lock ()
	Acquire the service mutex (use around property reads in render threads). More...
int	move_filter (int from, int to)
	Move the attached filter at position from to position to. More...
Service &	operator= (const Service &service)
Service *	producer ()
	Return the first upstream producer, or null. More...
Profile *	profile ()
	Return the profile associated with this service. More...
	Service ()
	Service (const Service &service)
	Service (mlt_service service)
	Wrap an existing mlt_service handle. More...
	Service (Service &service)
	Service (Service *service)
void	set_consumer (Service &service)
void	set_profile (mlt_profile profile)
void	set_profile (Profile &profile)
mlt_service_type	type ()
	Return the service sub-type (producer, filter, consumer, transition, etc.). More...
void	unlock ()
	Release the service mutex. More...
virtual	~Service ()
Public Member Functions inherited from Mlt::Properties
char *	anim_get (const char *name, int position, int length=0)
mlt_color	anim_get_color (const char *name, int position, int length=0)
double	anim_get_double (const char *name, int position, int length=0)
int	anim_get_int (const char *name, int position, int length=0)
mlt_rect	anim_get_rect (const char *name, int position, int length=0)
int	anim_set (const char *name, const char *value, int position, int length=0)
int	anim_set (const char *name, double value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)
int	anim_set (const char *name, int value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)
int	anim_set (const char *name, mlt_color value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)
int	anim_set (const char *name, mlt_rect value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)
void	block (void *object=NULL)
	Suppress event delivery to object. More...
void	clear (const char *name)
int	copy (Properties &that, const char *prefix)
	Copy all properties whose names begin with prefix from that. More...
int	count ()
	Return the number of name/value pairs stored. More...
void	debug (const char *title="Object", FILE *output=stderr)
int	dec_ref ()
void	dump (FILE *output=stderr)
	Write all properties to output as "name=value" lines. More...
int	fire_event (const char *event)
	Fire a named event manually. More...
char *	frames_to_time (int, mlt_time_format=mlt_time_smpte_df)
char *	get (const char *name)
	Get a string property value by name. More...
char *	get (int index)
	Return the property value at positional index as a string. More...
char *	get (int index, mlt_time_format)
	Return the property value at positional index in the given time format. More...
Animation *	get_anim (const char *name)
mlt_animation	get_animation (const char *name)
mlt_color	get_color (const char *name)
void *	get_data (const char *name)
void *	get_data (const char *name, int &size)
	Get opaque data stored by name; size receives the byte count. More...
void *	get_data (int index, int &size)
double	get_double (const char *name)
	Get a double property value by name. More...
int	get_int (const char *name)
	Get an integer property value by name. More...
int64_t	get_int64 (const char *name)
	Get a 64-bit integer property value by name. More...
const char *	get_lcnumeric ()
char *	get_name (int index)
	Return the property name at positional index. More...
Properties *	get_props (const char *name)
Properties *	get_props_at (int index)
mlt_rect	get_rect (const char *name)
char *	get_time (const char *name, mlt_time_format=mlt_time_smpte_df)
int	inc_ref ()
int	inherit (Properties &that)
	Copy all properties from that into this object. More...
bool	is_anim (const char *name)
bool	is_sequence ()
	Return true if all property names are numeric indices (i.e. More...
bool	is_valid ()
	Return true if the underlying mlt_properties handle is non-null. More...
Event *	listen (const char *id, void *object, mlt_listener)
	Register a listener callback for the named event. More...
void	load (const char *file)
	Merge properties from a file into this object. More...
void	lock ()
	Acquire the recursive mutex protecting this object. More...
void	mirror (Properties &that)
	Mirror all property changes on this object to that. More...
Properties &	operator= (const Properties &properties)
int	parse (const char *namevalue)
	Parse a "name=value" string and store the result. More...
int	pass_list (Properties &that, const char *list)
	Copy the space-delimited list of named properties from that. More...
void	pass_property (Properties &that, const char *name)
	Copy a single named property from that. More...
int	pass_values (Properties &that, const char *prefix)
	Copy all properties whose names begin with prefix from that. More...
int	preset (const char *name)
	Apply a named preset from the presets directory. More...
	Properties ()
	Properties (bool dummy)
	Properties (const char *file)
	Load properties from a file. More...
	Properties (const Properties &properties)
	Properties (mlt_properties properties)
	Wrap an existing mlt_properties without taking ownership. More...
	Properties (Properties &properties)
	Properties (void *properties)
bool	property_exists (const char *name)
int	ref_count ()
int	rename (const char *source, const char *dest)
	Rename property source to dest. More...
int	save (const char *file)
	Save properties to a file. More...
char *	serialise_yaml ()
int	set (const char *name, const char *value)
	Set a string property. More...
int	set (const char *name, double value)
	Set a double property. More...
int	set (const char *name, double x, double y, double w, double h, double opacity=1.0)
int	set (const char *name, int value)
	Set an integer property. More...
int	set (const char *name, int64_t value)
	Set a 64-bit integer property. More...
int	set (const char *name, mlt_color value)
int	set (const char *name, mlt_rect value)
int	set (const char *name, Properties &properties)
int	set (const char *name, void *value, int size, mlt_destructor destroy=NULL, mlt_serialiser serial=NULL)
	Store opaque data with an optional destructor and serialiser. More...
int	set_lcnumeric (const char *locale)
int	set_string (const char *name, const char *value)
	Set a string property (no environment-variable expansion). More...
Event *	setup_wait_for (const char *id)
	Set up a one-shot wait handle for event id. More...
int	time_to_frames (const char *time)
void	unblock (void *object=NULL)
	Resume event delivery to object. More...
void	unlock ()
	Release the recursive mutex. More...
void	wait_for (const char *id)
void	wait_for (Event *, bool destroy=true)
virtual	~Properties ()

Private Attributes
mlt_filter	instance

Additional Inherited Members
Static Public Member Functions inherited from Mlt::Properties
static void	delete_event (Event *)
static Properties *	parse_yaml (const char *file)
	Parse a YAML Tiny file and return a new Properties tree. More...

Detailed Description

C++ wrapper for mlt_filter — modifies a single producer's output.

A filter is attached to a service (typically a producer or another filter) and can inspect or modify each frame as it passes through the service network. Set the disable property to 1 to bypass the filter.

See also

mlt_filter_s

Constructor & Destructor Documentation

Filter() [1/8]

Filter::Filter

(

)

Filter() [2/8]

Filter::Filter	(	Profile &	profile,
		const char *	id,
		const char *	service = NULL
	)

Construct and instantiate filter id from the repository.

Filter() [3/8]

Filter::Filter	(	mlt_profile	profile,
		const char *	id,
		const char *	service = NULL
	)

Filter() [4/8]

Filter::Filter

(

Service &

filter

)

Filter() [5/8]

Filter::Filter

(

Filter &

filter

)

Filter() [6/8]

Filter::Filter

(

const Filter &

filter

)

Filter() [7/8]

Filter::Filter

(

mlt_filter

filter

)

Wrap an existing mlt_filter handle.

Filter() [8/8]

Filter::Filter

(

Filter *

filter

)

~Filter()

Filter::~Filter ( )

virtual

Member Function Documentation

connect()

int Filter::connect	(	Service &	service,
		int	index = 0
	)

Connect this filter to service at index.

get_filter()

mlt_filter Filter::get_filter ( )

virtual

get_in()

int Filter::get_in

(

)

Return the in-point frame number.

get_length()

int Filter::get_length

(

)

Return the duration (out - in + 1).

get_length2()

int Filter::get_length2

(

Frame &

frame

)

Return the duration relative to frame's producer length.

get_out()

int Filter::get_out

(

)

Return the out-point frame number.

get_position()

int Filter::get_position

(

Frame &

frame

)

Return the current position of frame relative to the filter's in-point.

get_progress()

double Filter::get_progress

(

Frame &

frame

)

Return the playback progress of frame in the range [0.0, 1.0].

get_service()

mlt_service Filter::get_service ( )

overridevirtual

Reimplemented from Mlt::Service.

get_track()

int Filter::get_track

(

)

Return the multitrack track index on which this filter is applied.

operator=()

Filter & Filter::operator=

(

const Filter &

filter

)

process()

void Filter::process

(

Frame &

frame

)

Run the filter's process function on frame (used by subclasses).

set_in_and_out()

void Filter::set_in_and_out	(	int	in,
		int	out
	)

Restrict filter activity to the frame range [in, out].

Field Documentation

instance

mlt_filter Mlt::Filter::instance

private

---

The documentation for this class was generated from the following files:

• mlt++/MltFilter.h
• mlt++/MltFilter.cpp
