Mlt::Multitrack Class Reference

C++ wrapper for mlt_multitrack — parallel track container. More...

#include <MltMultitrack.h>

Inheritance diagram for Mlt::Multitrack:

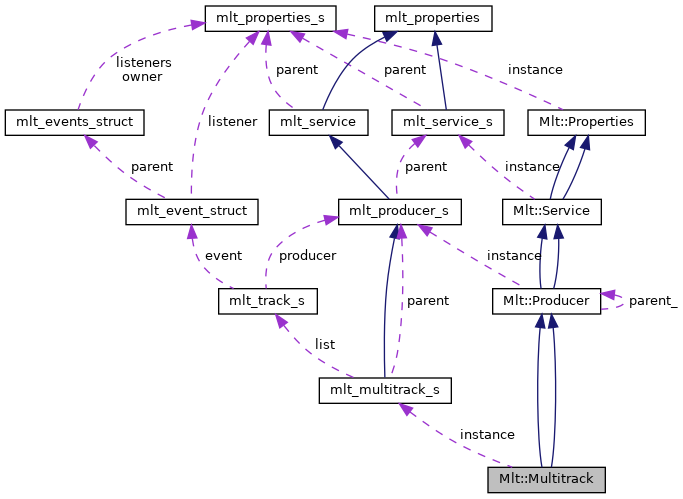

Collaboration diagram for Mlt::Multitrack:

Public Member Functions
int	clip (mlt_whence whence, int index)
int	connect (Producer &producer, int index)
	Connect producer as track index. More...
int	count ()
	Return the number of tracks. More...
int	disconnect (int index)
	Disconnect the track at index. More...
mlt_multitrack	get_multitrack ()
mlt_producer	get_producer () override
int	insert (Producer &producer, int index)
	Insert producer at index, shifting higher tracks up. More...
	Multitrack (mlt_multitrack multitrack)
	Wrap an existing mlt_multitrack handle. More...
	Multitrack (Multitrack &multitrack)
	Multitrack (Service &multitrack)
void	refresh ()
	Recalculate the multitrack length from its tracks. More...
Producer *	track (int index)
	Return the producer on track index. More...
virtual	~Multitrack ()
Public Member Functions inherited from Mlt::Producer
int	clear ()
Producer *	cut (int in=0, int out=-1)
	Create a cut (sub-range) producer sharing this producer's resource. More...
int	frame ()
	Return the current absolute frame number. More...
char *	frame_time (mlt_time_format=mlt_time_smpte_df)
	Return the current timecode string. More...
int64_t	get_creation_time ()
double	get_fps ()
	Return the frames-per-second rate for this producer's profile. More...
int	get_in ()
	Return the in-point frame number. More...
int	get_length ()
	Return the total length of the underlying resource in frames. More...
char *	get_length_time (mlt_time_format=mlt_time_smpte_df)
int	get_out ()
	Return the out-point frame number. More...
mlt_producer	get_parent ()
int	get_playtime ()
	Return the active play duration (out - in + 1). More...
mlt_service	get_service () override
double	get_speed ()
	Return the current playback speed. More...
bool	is_blank ()
	Return true if this is a blank/gap clip. More...
bool	is_cut ()
	Return true if this producer is a cut. More...
Producer &	operator= (const Producer &producer)
void	optimise ()
Producer &	parent ()
	Return the parent producer (for cut producers, the shared root). More...
int	pause ()
	Pause playback (sets speed to 0). More...
int	position ()
	Return the current position relative to in-point. More...
bool	probe ()
	Producer ()
	Producer (const Producer &producer)
	Producer (mlt_producer producer)
	Wrap an existing mlt_producer handle. More...
	Producer (mlt_profile profile, const char *id, const char *service=NULL)
	Producer (Producer &producer)
	Producer (Producer *producer)
	Producer (Profile &profile, const char *id, const char *service=NULL)
	Construct and instantiate producer id from the repository. More...
	Producer (Service &producer)
bool	runs_into (Producer &that)
bool	same_clip (Producer &that)
int	seek (const char *time)
	Seek to a timecode string (e.g. More...
int	seek (int position)
	Seek to position (relative to in-point). More...
void	set_creation_time (int64_t creation_time)
int	set_in_and_out (int in, int out)
	Set the active in/out range in frame numbers. More...
int	set_speed (double speed)
	Set the playback speed (1.0 = normal, 0.0 = paused, -1.0 = reverse). More...
virtual	~Producer ()
Public Member Functions inherited from Mlt::Service
int	attach (Filter &filter)
	Attach filter to this service. More...
int	connect_producer (Service &producer, int index=0)
	Connect producer as the input at index. More...
Service *	consumer ()
	Return the downstream consumer service, or null. More...
int	detach (Filter &filter)
	Detach filter from this service. More...
int	disconnect_all_producers ()
	Disconnect all producer inputs. More...
int	disconnect_producer (int index=0)
	Disconnect the producer at index. More...
Filter *	filter (int index)
	Return the attached filter at index. More...
int	filter_count ()
	Return the number of attached filters. More...
Frame *	get_frame (int index=0)
	Pull and return frame index from this service. More...
mlt_profile	get_profile ()
virtual mlt_properties	get_properties () override
int	insert_producer (Service &producer, int index=0)
	Insert producer at index, shifting existing connections up. More...
void	lock ()
	Acquire the service mutex (use around property reads in render threads). More...
int	move_filter (int from, int to)
	Move the attached filter at position from to position to. More...
Service &	operator= (const Service &service)
Service *	producer ()
	Return the first upstream producer, or null. More...
Profile *	profile ()
	Return the profile associated with this service. More...
	Service ()
	Service (const Service &service)
	Service (mlt_service service)
	Wrap an existing mlt_service handle. More...
	Service (Service &service)
	Service (Service *service)
void	set_consumer (Service &service)
void	set_profile (mlt_profile profile)
void	set_profile (Profile &profile)
mlt_service_type	type ()
	Return the service sub-type (producer, filter, consumer, transition, etc.). More...
void	unlock ()
	Release the service mutex. More...
virtual	~Service ()
Public Member Functions inherited from Mlt::Properties
char *	anim_get (const char *name, int position, int length=0)
mlt_color	anim_get_color (const char *name, int position, int length=0)
double	anim_get_double (const char *name, int position, int length=0)
int	anim_get_int (const char *name, int position, int length=0)
mlt_rect	anim_get_rect (const char *name, int position, int length=0)
int	anim_set (const char *name, const char *value, int position, int length=0)
int	anim_set (const char *name, double value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)
int	anim_set (const char *name, int value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)
int	anim_set (const char *name, mlt_color value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)
int	anim_set (const char *name, mlt_rect value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)
void	block (void *object=NULL)
	Suppress event delivery to object. More...
void	clear (const char *name)
int	copy (Properties &that, const char *prefix)
	Copy all properties whose names begin with prefix from that. More...
int	count ()
	Return the number of name/value pairs stored. More...
void	debug (const char *title="Object", FILE *output=stderr)
int	dec_ref ()
void	dump (FILE *output=stderr)
	Write all properties to output as "name=value" lines. More...
int	fire_event (const char *event)
	Fire a named event manually. More...
char *	frames_to_time (int, mlt_time_format=mlt_time_smpte_df)
char *	get (const char *name)
	Get a string property value by name. More...
char *	get (int index)
	Return the property value at positional index as a string. More...
char *	get (int index, mlt_time_format)
	Return the property value at positional index in the given time format. More...
Animation *	get_anim (const char *name)
mlt_animation	get_animation (const char *name)
mlt_color	get_color (const char *name)
void *	get_data (const char *name)
void *	get_data (const char *name, int &size)
	Get opaque data stored by name; size receives the byte count. More...
void *	get_data (int index, int &size)
double	get_double (const char *name)
	Get a double property value by name. More...
int	get_int (const char *name)
	Get an integer property value by name. More...
int64_t	get_int64 (const char *name)
	Get a 64-bit integer property value by name. More...
const char *	get_lcnumeric ()
char *	get_name (int index)
	Return the property name at positional index. More...
Properties *	get_props (const char *name)
Properties *	get_props_at (int index)
mlt_rect	get_rect (const char *name)
char *	get_time (const char *name, mlt_time_format=mlt_time_smpte_df)
int	inc_ref ()
int	inherit (Properties &that)
	Copy all properties from that into this object. More...
bool	is_anim (const char *name)
bool	is_sequence ()
	Return true if all property names are numeric indices (i.e. More...
bool	is_valid ()
	Return true if the underlying mlt_properties handle is non-null. More...
Event *	listen (const char *id, void *object, mlt_listener)
	Register a listener callback for the named event. More...
void	load (const char *file)
	Merge properties from a file into this object. More...
void	lock ()
	Acquire the recursive mutex protecting this object. More...
void	mirror (Properties &that)
	Mirror all property changes on this object to that. More...
Properties &	operator= (const Properties &properties)
int	parse (const char *namevalue)
	Parse a "name=value" string and store the result. More...
int	pass_list (Properties &that, const char *list)
	Copy the space-delimited list of named properties from that. More...
void	pass_property (Properties &that, const char *name)
	Copy a single named property from that. More...
int	pass_values (Properties &that, const char *prefix)
	Copy all properties whose names begin with prefix from that. More...
int	preset (const char *name)
	Apply a named preset from the presets directory. More...
	Properties ()
	Properties (bool dummy)
	Properties (const char *file)
	Load properties from a file. More...
	Properties (const Properties &properties)
	Properties (mlt_properties properties)
	Wrap an existing mlt_properties without taking ownership. More...
	Properties (Properties &properties)
	Properties (void *properties)
bool	property_exists (const char *name)
int	ref_count ()
int	rename (const char *source, const char *dest)
	Rename property source to dest. More...
int	save (const char *file)
	Save properties to a file. More...
char *	serialise_yaml ()
int	set (const char *name, const char *value)
	Set a string property. More...
int	set (const char *name, double value)
	Set a double property. More...
int	set (const char *name, double x, double y, double w, double h, double opacity=1.0)
int	set (const char *name, int value)
	Set an integer property. More...
int	set (const char *name, int64_t value)
	Set a 64-bit integer property. More...
int	set (const char *name, mlt_color value)
int	set (const char *name, mlt_rect value)
int	set (const char *name, Properties &properties)
int	set (const char *name, void *value, int size, mlt_destructor destroy=NULL, mlt_serialiser serial=NULL)
	Store opaque data with an optional destructor and serialiser. More...
int	set_lcnumeric (const char *locale)
int	set_string (const char *name, const char *value)
	Set a string property (no environment-variable expansion). More...
Event *	setup_wait_for (const char *id)
	Set up a one-shot wait handle for event id. More...
int	time_to_frames (const char *time)
void	unblock (void *object=NULL)
	Resume event delivery to object. More...
void	unlock ()
	Release the recursive mutex. More...
void	wait_for (const char *id)
void	wait_for (Event *, bool destroy=true)
virtual	~Properties ()

Private Attributes
mlt_multitrack	instance

Additional Inherited Members
Static Public Member Functions inherited from Mlt::Properties
static void	delete_event (Event *)
static Properties *	parse_yaml (const char *file)
	Parse a YAML Tiny file and return a new Properties tree. More...

Detailed Description

C++ wrapper for mlt_multitrack — parallel track container.

A multitrack holds multiple producers on parallel tracks and delivers one frame per track per pull. It is the track container inside a Tractor.

See also

mlt_multitrack_s

Constructor & Destructor Documentation

Multitrack() [1/3]

Multitrack::Multitrack

(

mlt_multitrack

multitrack

)

Wrap an existing mlt_multitrack handle.

Multitrack() [2/3]

Multitrack::Multitrack

(

Service &

multitrack

)

Multitrack() [3/3]

Multitrack::Multitrack

(

Multitrack &

multitrack

)

~Multitrack()

Multitrack::~Multitrack ( )

virtual

Member Function Documentation

clip()

int Multitrack::clip	(	mlt_whence	whence,
		int	index
	)

connect()

int Multitrack::connect	(	Producer &	producer,
		int	index
	)

Connect producer as track index.

count()

int Multitrack::count

(

)

Return the number of tracks.

disconnect()

int Multitrack::disconnect

(

int

index

)

Disconnect the track at index.

get_multitrack()

mlt_multitrack Multitrack::get_multitrack

(

)

get_producer()

mlt_producer Multitrack::get_producer ( )

overridevirtual

Reimplemented from Mlt::Producer.

insert()

int Multitrack::insert	(	Producer &	producer,
		int	index
	)

Insert producer at index, shifting higher tracks up.

refresh()

void Multitrack::refresh

(

)

Recalculate the multitrack length from its tracks.

track()

Producer * Multitrack::track

(

int

index

)

Return the producer on track index.

Caller does not own the result.

Field Documentation

instance

mlt_multitrack Mlt::Multitrack::instance

private

---

The documentation for this class was generated from the following files:

• mlt++/MltMultitrack.h
• mlt++/MltMultitrack.cpp
