C++ wrapper for mlt_consumer — pulls and outputs audio/video. More...

#include <MltConsumer.h>

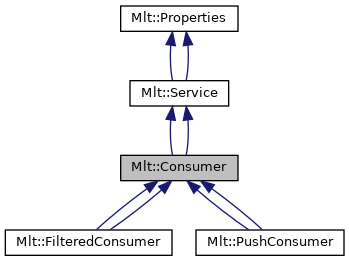

Inheritance diagram for Mlt::Consumer:

[legend]

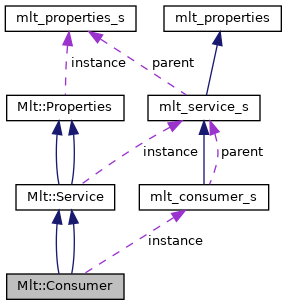

Collaboration diagram for Mlt::Consumer:

[legend]

Public Member Functions
virtual int	connect (Service &service)
	Connect `service` as the source for this consumer. More...

	Consumer ()

	Consumer (Consumer &consumer)

	Consumer (mlt_consumer consumer)
	Wrap an existing mlt_consumer handle. More...

	Consumer (mlt_profile profile, const char id, const char service=NULL)

	Consumer (Profile &profile)

	Consumer (Profile &profile, const char id, const char service=NULL)
	Construct and instantiate consumer `id` from the repository. More...

	Consumer (Service &consumer)

virtual mlt_consumer	get_consumer ()

mlt_service	get_service () override

bool	is_stopped ()
	Return true if the consumer is not currently rendering. More...

int	position ()
	Return the current output frame position. More...

void	purge ()
	Flush buffered frames. More...

int	run ()
	Start rendering synchronously (returns when stopped). More...

int	start ()
	Start rendering asynchronously in a background thread. More...

int	stop ()
	Stop the rendering thread and wait for it to finish. More...

virtual	~Consumer ()

Public Member Functions inherited from Mlt::Service
int	attach (Filter &filter)
	Attach `filter` to this service. More...

int	connect_producer (Service &producer, int index=0)
	Connect `producer` as the input at `index`. More...

Service *	consumer ()
	Return the downstream consumer service, or null. More...

int	detach (Filter &filter)
	Detach `filter` from this service. More...

int	disconnect_all_producers ()
	Disconnect all producer inputs. More...

int	disconnect_producer (int index=0)
	Disconnect the producer at `index`. More...

Filter *	filter (int index)
	Return the attached filter at `index`. More...

int	filter_count ()
	Return the number of attached filters. More...

Frame *	get_frame (int index=0)
	Pull and return frame `index` from this service. More...

mlt_profile	get_profile ()

virtual mlt_properties	get_properties () override

int	insert_producer (Service &producer, int index=0)
	Insert `producer` at `index`, shifting existing connections up. More...

void	lock ()
	Acquire the service mutex (use around property reads in render threads). More...

int	move_filter (int from, int to)
	Move the attached filter at position `from` to position `to`. More...

Service &	operator= (const Service &service)

Service *	producer ()
	Return the first upstream producer, or null. More...

Profile *	profile ()
	Return the profile associated with this service. More...

	Service ()

	Service (const Service &service)

	Service (mlt_service service)
	Wrap an existing mlt_service handle. More...

	Service (Service &service)

	Service (Service *service)

void	set_consumer (Service &service)

void	set_profile (mlt_profile profile)

void	set_profile (Profile &profile)

mlt_service_type	type ()
	Return the service sub-type (producer, filter, consumer, transition, etc.). More...

void	unlock ()
	Release the service mutex. More...

virtual	~Service ()

Public Member Functions inherited from Mlt::Properties
char *	anim_get (const char *name, int position, int length=0)

mlt_color	anim_get_color (const char *name, int position, int length=0)

double	anim_get_double (const char *name, int position, int length=0)

int	anim_get_int (const char *name, int position, int length=0)

mlt_rect	anim_get_rect (const char *name, int position, int length=0)

int	anim_set (const char name, const char value, int position, int length=0)

int	anim_set (const char *name, double value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, int value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_color value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

int	anim_set (const char *name, mlt_rect value, int position, int length=0, mlt_keyframe_type keyframe_type=mlt_keyframe_linear)

void	block (void *object=NULL)
	Suppress event delivery to `object`. More...

void	clear (const char *name)

int	copy (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`. More...

int	count ()
	Return the number of name/value pairs stored. More...

void	debug (const char title="Object", FILE output=stderr)

int	dec_ref ()

void	dump (FILE *output=stderr)
	Write all properties to `output` as "name=value" lines. More...

int	fire_event (const char *event)
	Fire a named event manually. More...

char *	frames_to_time (int, mlt_time_format=mlt_time_smpte_df)

char *	get (const char *name)
	Get a string property value by name. More...

char *	get (int index)
	Return the property value at positional `index` as a string. More...

char *	get (int index, mlt_time_format)
	Return the property value at positional `index` in the given time format. More...

Animation *	get_anim (const char *name)

mlt_animation	get_animation (const char *name)

mlt_color	get_color (const char *name)

void *	get_data (const char *name)

void *	get_data (const char *name, int &size)
	Get opaque data stored by name; `size` receives the byte count. More...

void *	get_data (int index, int &size)

double	get_double (const char *name)
	Get a double property value by name. More...

int	get_int (const char *name)
	Get an integer property value by name. More...

int64_t	get_int64 (const char *name)
	Get a 64-bit integer property value by name. More...

const char *	get_lcnumeric ()

char *	get_name (int index)
	Return the property name at positional `index`. More...

Properties *	get_props (const char *name)

Properties *	get_props_at (int index)

mlt_rect	get_rect (const char *name)

char *	get_time (const char *name, mlt_time_format=mlt_time_smpte_df)

int	inc_ref ()

int	inherit (Properties &that)
	Copy all properties from `that` into this object. More...

bool	is_anim (const char *name)

bool	is_sequence ()
	Return true if all property names are numeric indices (i.e. More...

bool	is_valid ()
	Return true if the underlying mlt_properties handle is non-null. More...

Event *	listen (const char id, void object, mlt_listener)
	Register a listener callback for the named event. More...

void	load (const char *file)
	Merge properties from a file into this object. More...

void	lock ()
	Acquire the recursive mutex protecting this object. More...

void	mirror (Properties &that)
	Mirror all property changes on this object to `that`. More...

Properties &	operator= (const Properties &properties)

int	parse (const char *namevalue)
	Parse a "name=value" string and store the result. More...

int	pass_list (Properties &that, const char *list)
	Copy the space-delimited list of named properties from `that`. More...

void	pass_property (Properties &that, const char *name)
	Copy a single named property from `that`. More...

int	pass_values (Properties &that, const char *prefix)
	Copy all properties whose names begin with `prefix` from `that`. More...

int	preset (const char *name)
	Apply a named preset from the presets directory. More...

	Properties ()

	Properties (bool dummy)

	Properties (const char *file)
	Load properties from a file. More...

	Properties (const Properties &properties)

	Properties (mlt_properties properties)
	Wrap an existing mlt_properties without taking ownership. More...

	Properties (Properties &properties)

	Properties (void *properties)

bool	property_exists (const char *name)

int	ref_count ()

int	rename (const char source, const char dest)
	Rename property `source` to `dest`. More...

int	save (const char *file)
	Save properties to a file. More...

char *	serialise_yaml ()

int	set (const char name, const char value)
	Set a string property. More...

int	set (const char *name, double value)
	Set a double property. More...

int	set (const char *name, double x, double y, double w, double h, double opacity=1.0)

int	set (const char *name, int value)
	Set an integer property. More...

int	set (const char *name, int64_t value)
	Set a 64-bit integer property. More...

int	set (const char *name, mlt_color value)

int	set (const char *name, mlt_rect value)

int	set (const char *name, Properties &properties)

int	set (const char name, void value, int size, mlt_destructor destroy=NULL, mlt_serialiser serial=NULL)
	Store opaque data with an optional destructor and serialiser. More...

int	set_lcnumeric (const char *locale)

int	set_string (const char name, const char value)
	Set a string property (no environment-variable expansion). More...

Event *	setup_wait_for (const char *id)
	Set up a one-shot wait handle for event `id`. More...

int	time_to_frames (const char *time)

void	unblock (void *object=NULL)
	Resume event delivery to `object`. More...

void	unlock ()
	Release the recursive mutex. More...

void	wait_for (const char *id)

void	wait_for (Event *, bool destroy=true)

virtual	~Properties ()

Private Attributes
mlt_consumer	instance

Additional Inherited Members
Static Public Member Functions inherited from Mlt::Properties
static void	delete_event (Event *)

static Properties *	parse_yaml (const char *file)
	Parse a YAML Tiny file and return a new Properties tree. More...

Detailed Description

C++ wrapper for mlt_consumer — pulls and outputs audio/video.

A consumer pulls frames from the service network and renders them to a device, file, or socket. It drives the rendering pipeline. Connect a producer (or tractor/playlist) with connect(), then call start().

See also: mlt_consumer_s

Constructor & Destructor Documentation

◆ Consumer() [1/7]

Consumer::Consumer ( )

◆ Consumer() [2/7]

Consumer::Consumer ( Profile & profile )

◆ Consumer() [3/7]

Consumer::Consumer	(	Profile &	profile,
		const char *	id,
		const char *	service = `NULL`
	)

Construct and instantiate consumer id from the repository.

◆ Consumer() [4/7]

Consumer::Consumer	(	mlt_profile	profile,
		const char *	id,
		const char *	service = `NULL`
	)

◆ Consumer() [5/7]

Consumer::Consumer ( Service & consumer )

◆ Consumer() [6/7]

Consumer::Consumer ( Consumer & consumer )

◆ Consumer() [7/7]

Consumer::Consumer ( mlt_consumer consumer )

Wrap an existing mlt_consumer handle.

◆ ~Consumer()

Consumer::~Consumer ( )

virtual

Member Function Documentation

◆ connect()

int Consumer::connect ( Service & service )

virtual

Connect service as the source for this consumer.

Reimplemented in Mlt::PushConsumer, and Mlt::FilteredConsumer.

◆ get_consumer()

mlt_consumer Consumer::get_consumer ( )

virtual

◆ get_service()

mlt_service Consumer::get_service ( )

overridevirtual

Reimplemented from Mlt::Service.

◆ is_stopped()

bool Consumer::is_stopped ( )

Return true if the consumer is not currently rendering.

◆ position()

int Consumer::position ( )

Return the current output frame position.

◆ purge()

void Consumer::purge ( )

Flush buffered frames.

◆ run()

int Consumer::run ( )

Start rendering synchronously (returns when stopped).

◆ start()

int Consumer::start ( )

Start rendering asynchronously in a background thread.

◆ stop()

int Consumer::stop ( )

Stop the rendering thread and wait for it to finish.

Field Documentation

◆ instance

mlt_consumer Mlt::Consumer::instance

private

The documentation for this class was generated from the following files:

mlt++/MltConsumer.h
mlt++/MltConsumer.cpp

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Consumer() [1/7]

◆ Consumer() [2/7]

◆ Consumer() [3/7]

◆ Consumer() [4/7]

◆ Consumer() [5/7]

◆ Consumer() [6/7]

◆ Consumer() [7/7]

◆ ~Consumer()

Member Function Documentation

◆ connect()

◆ get_consumer()

◆ get_service()

◆ is_stopped()

◆ position()

◆ purge()

◆ run()

◆ start()

◆ stop()

Field Documentation

◆ instance
